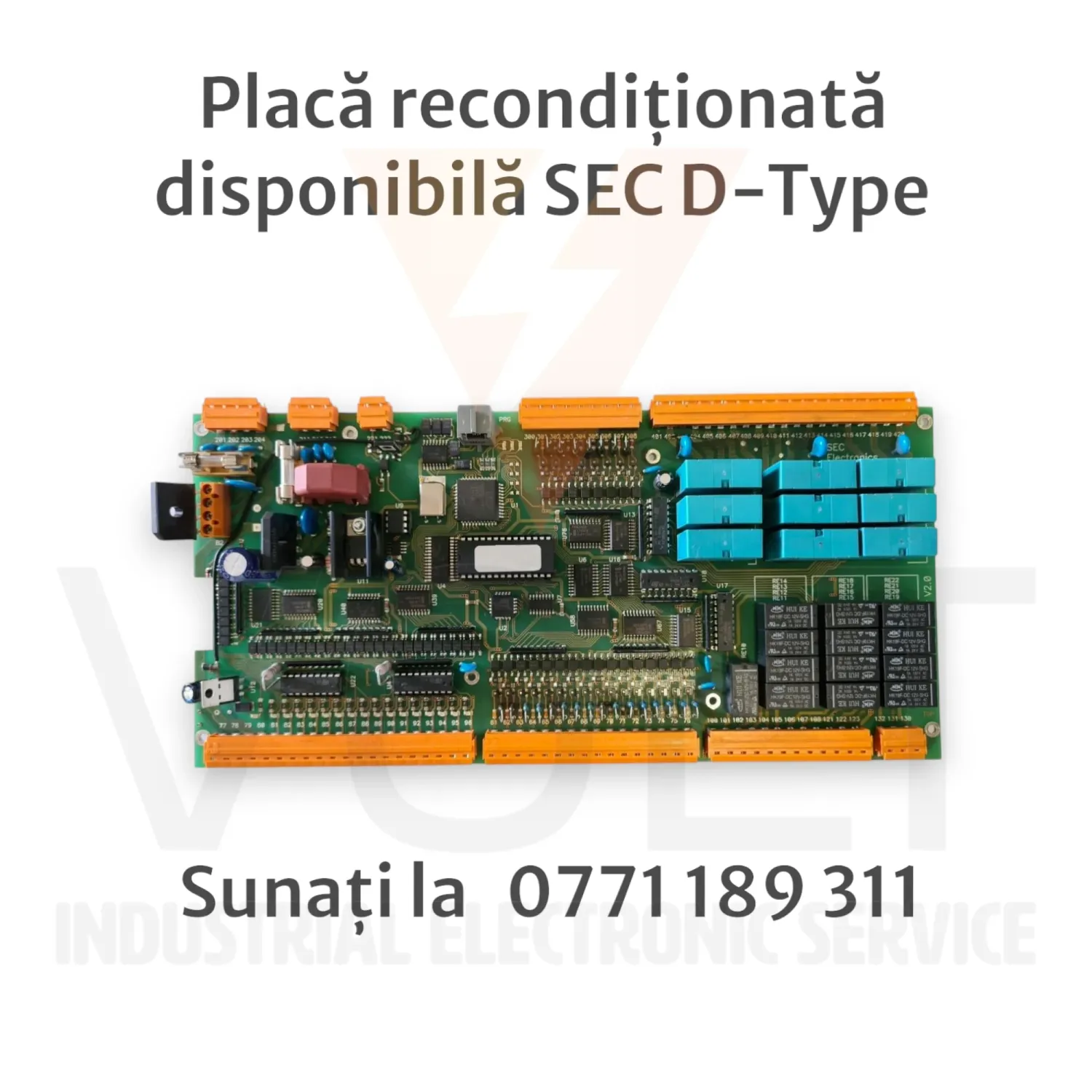

Placa D-Type Elevator control Board v 2.0 - SEC Electronics

Maximum number of served floors:

• 6 full up and down collective

• 15 down collective

• 16 universal control

Maximum number of lifts working in group:

•2

Supported lift systems:

• electric single speed

• electric two speed

• electric VVVF or ACVV

• hydraulic direct start

• hydraulic star delta start

Maximal lift speed:

• 1,5 m/s

Positioning possibilities:

• switches for shaft information

• switches for pre-opening

• switches for relevelling

Number of doors served:

• 1

Door types served:

• all types

User’s interface:

• built in LED diode for position indicator and error signalisation

• built in RS 232 line for programming

Real time clock:

• no

Serial output for indicator and voice module:

• 1 x line with SSL2 protocol

Other important characteristics:

• 19 programmable timers

• 76 programmable parameters

• error table and last events table in EEPROM circuit

• all inputs equipped with LED diodes

• all connections made with plugs

Compliance with the standards:

• EN 81-1

• EN 81-2

• lift directive EC 95/16

• EN 12015

• EN 12016

• EN 50178
